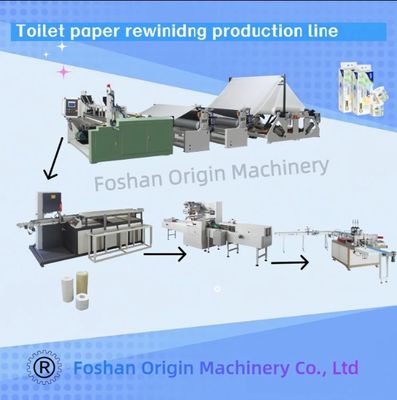

High efficiency fully Automatic Toilet Roll Rewinding Machine Production LINE with good price

Machine features:
1. Scope: Toilet roll / Kitchen towel / Bed sheet roll / Maxi roll / JRT / Industrial roll
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding log diameter Φ80-300mm,
4. log saw cutting roll diameter Φ80-135mm, band saw cutting roll diameter Φ200-300mm (other sizes to be confirmed)
5. Optional unit: Edge-embossing,Embossing unit, Lamination unit

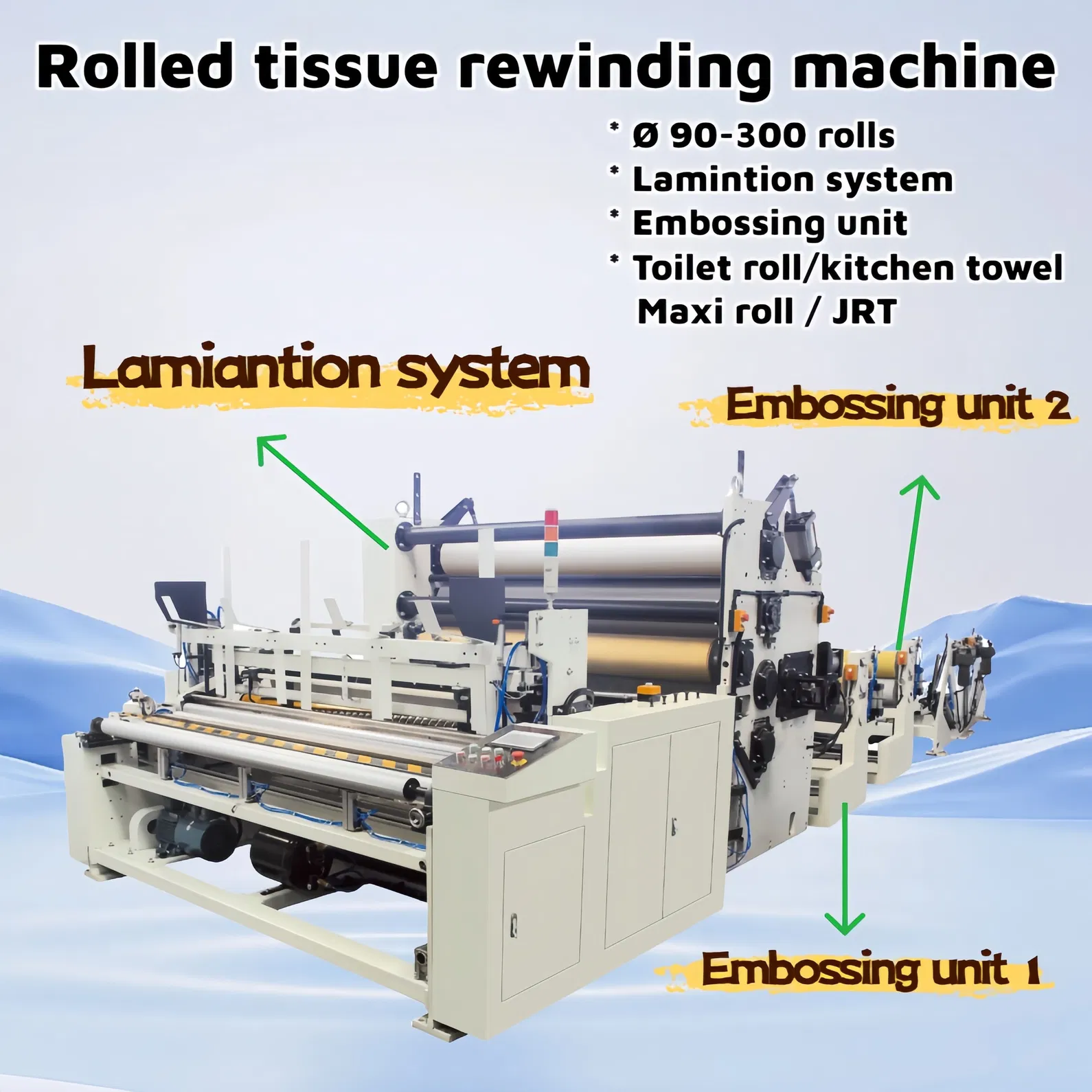

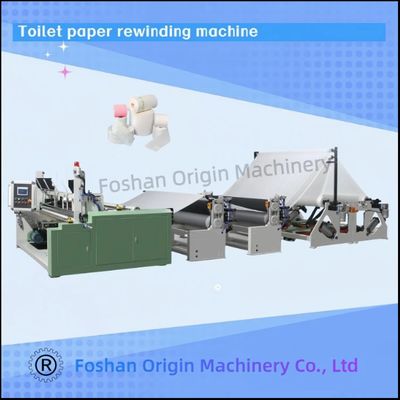

Toielt roll / Kitchen towel / JRT/ Maxi roll Rewinding machine
Machine features:
1. Individual motor driving wall-type unwinder. It has simple and strong structure, it is easy for cleaning.
Standard jumbo roll diameter ≤Φ1500mm.
Larger jumbo roll size unwinders are available to be ordered.

2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.

3. Winding diameter Φ90-300mm
One rewinder can various rolled tissue products, rolls' diameter from 90mm to 300mm.

4. Each unit is driven by independent motor. The driving system doesn't adopt gearbox , manual speed adjustor any more. Driving system is simpler and easy maintenance.

5. Web tension at each unit could be set on the touch screen.

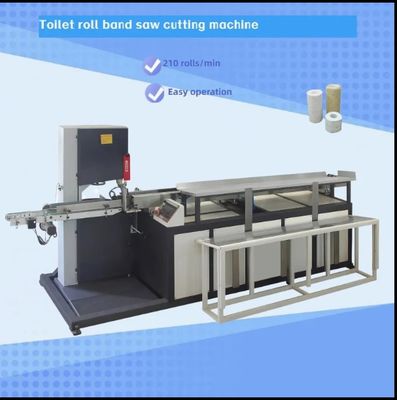

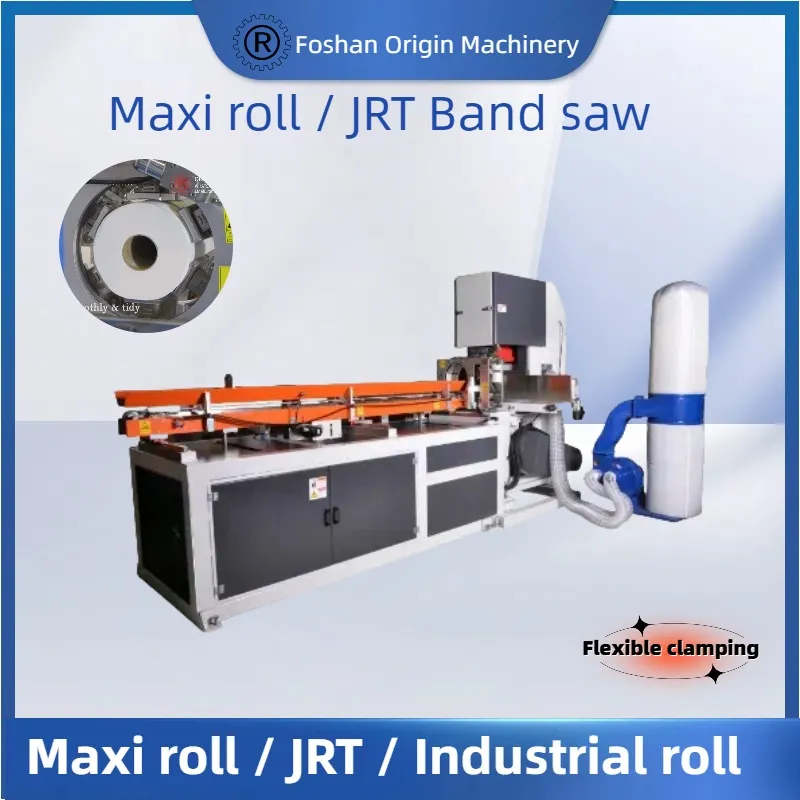

Automatic Maxi roll / JRT band saw cutting machine
Machine features:

1. Equipped with flexible clamping system, it can work with different cutting log diameters without replacing the clamper . Clamping log diameter can be set on touch panel directly.
2. Cutting operation is fully automatic , increase the safety in production.
3. Saw blade tension is controlled by hydraulic system . The compact rolls which carry hard paper cores are cut easily.
4. It is easy to operate this band saw by setting some simple cutting parameters on touch panel.

Automatic Maxi roll / JRT roll sealing & shrink machine
This machine is designed for shrinking wrapping.
It includes two main parts:
1. Side sealing machine. It is autoamtic model, no need manual operation.
2. Heating tunnel for shrinking with Intelligent temperature controller

Lable machine can be added in this line.

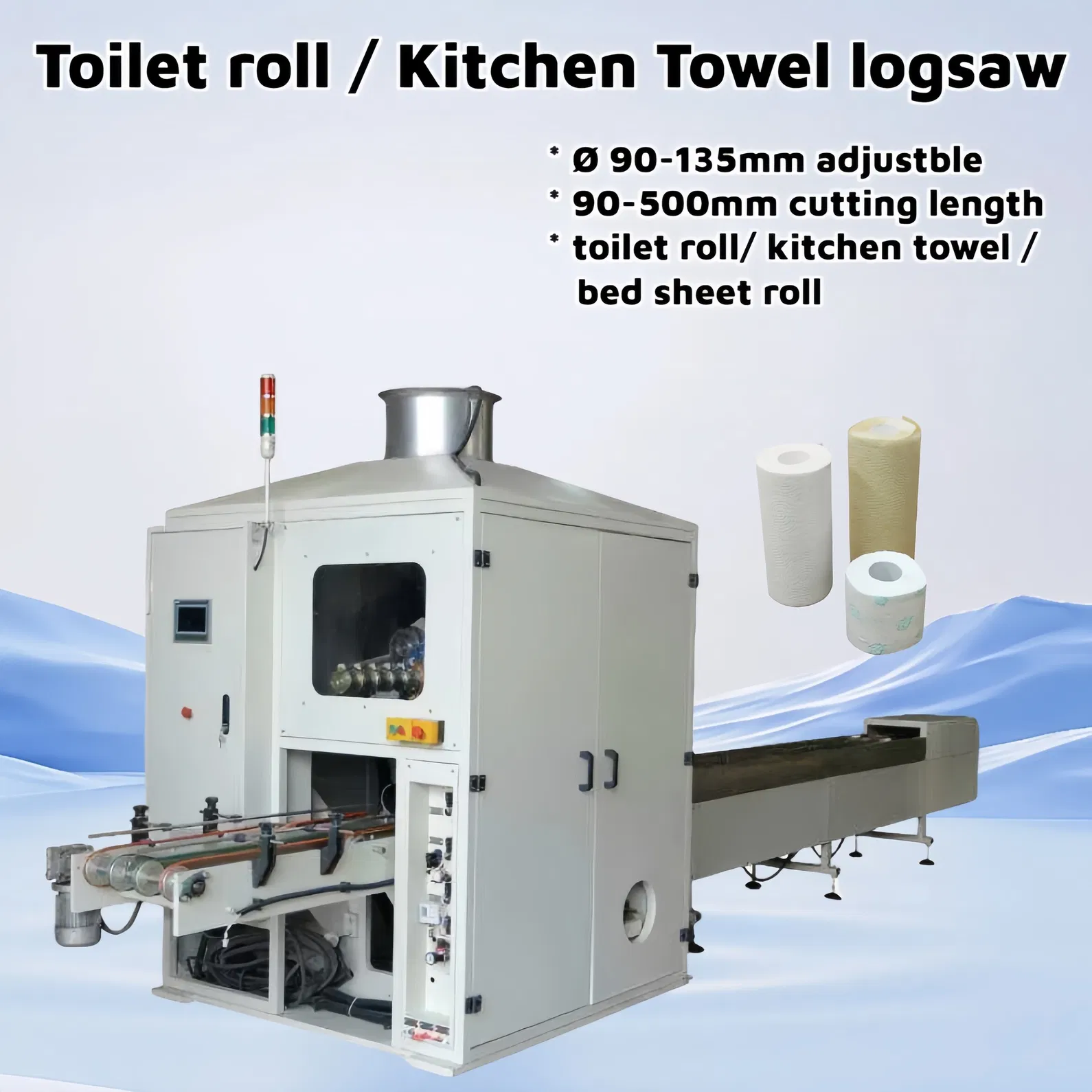

Automatic toielt roll / kitchen towel / bed sheet roll log saw
This machine is designed for cutting toielt roll / kitchen towel / bed sheet roll.

1. Servo driving ensures precise cutting length
2. Two cutting lanes
3. Cutting speed 200cuts/min/lane
4. Cutting roll diameter: 90-135mm
5. Cutting length 90-500mm (bed sheet roll can be cut)

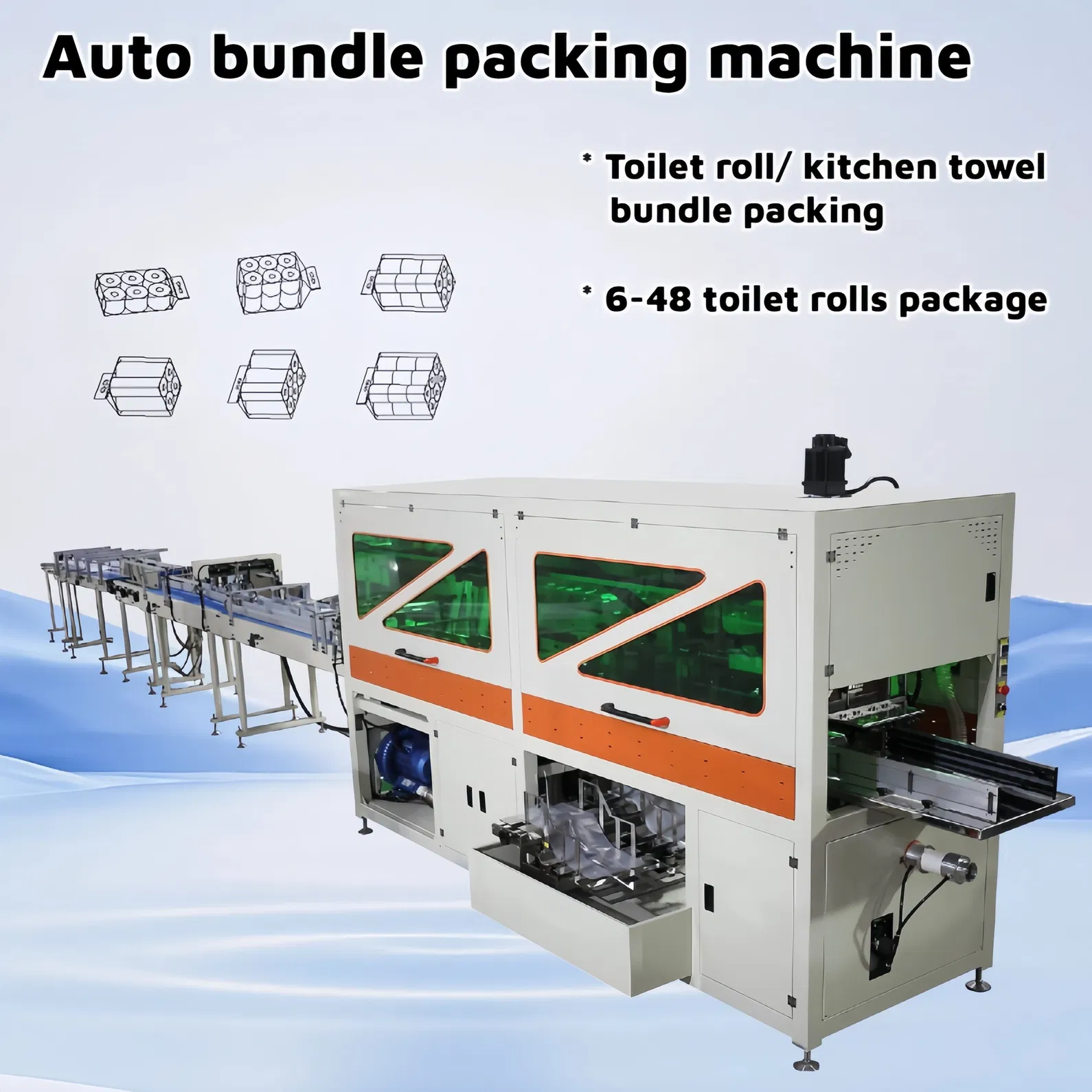

Automatic Toilet roll & Kitchen towel bundle packing machine
This machine is designed for toilet roll & kitchen towel multi rolls package

1. Servo driving
2. Multiple packing specifications available: 2-4 lanes , 1-2 layers package
3. 6-48 toilet rolls package available
4. Packing material: Per-made bag (PE / CPP)

Foshan Origin Machinery Co., Ltd.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
